AT-Patch
ATsens advanced technology makes it possible to enhance high accuracy ECG detection. The sensor chip exclusively adopted to AT-Patch shows high performance to gather ECG signals from the heart and the short-length electrode built into the patch prominently reduces the inflow of noise(muscle signal) caused by body movement.
AT-Patch Features
01
Allows for showering and light activities
AT-Patch provides shower proof function. It meets the requirement of IP44 or IP57 grade so that it can be exposed to spray water. This function designed for patients helps to improve the quality of patient compliance during wearing it. AT-Patch also operates while you work, walk, perform light activities, eat and sleep.
02
No charging or electrode replacement required while the ECG monitoring
In the clinical field, long-time ECG monitoring is necessary to have a chance to find arrhythmias or irregular heartbeats that appear intermittently and get timely treatments. AT-Patch operates for up to 14 days(active mode) with only one single-use coin cell battery. Its high power consumption efficiency makes uninterrupted long-term ECG monitoring possible and is maintenance-free.
03
Small size & light weight
ATsens pitched in its technology to make the device optimised for wearability and ambulatory ECG monitoring. AT-Patch is compact in size and weighs only 13g. This small patch-type device provides a comfortable experience.
04

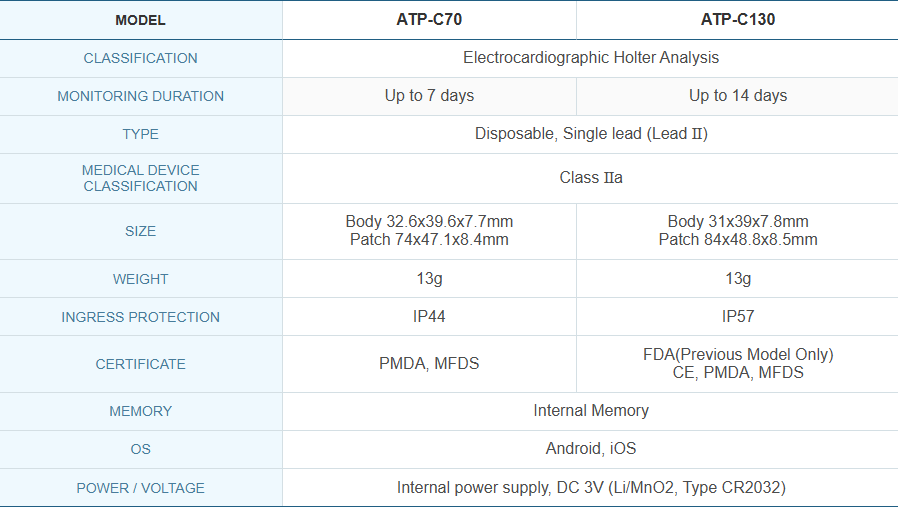

ECG Monitoring duration selectable
AT-Patch is optimised for long-term continuous ECG monitoring. There is both a 7-day or 14-day model depending on the duration of the ECG monitoring required.

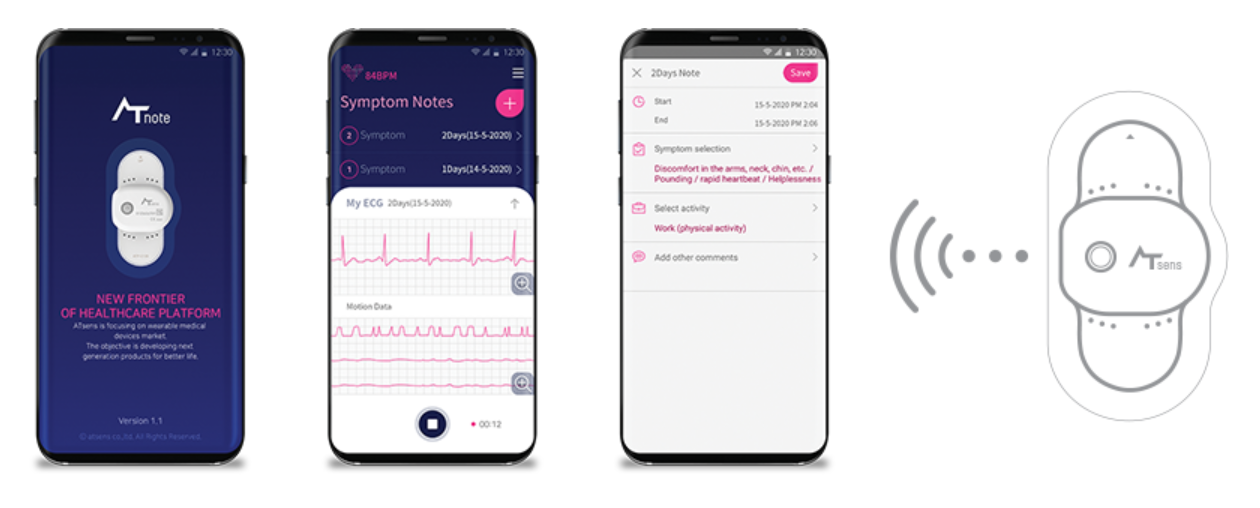

AT-Note
Live ECG viewer via bluetooth
AT-Note provides real-time ECG data and 3-Axis sensor(motion) data from AT-Patch. If you have a compatible smartphone, it can easily be used.
Easy to record your symptom
There are no need to carry pen or papers. When you feel any unusual heartbeats, push the power-button shortly. You can simply note your symptoms on the app.

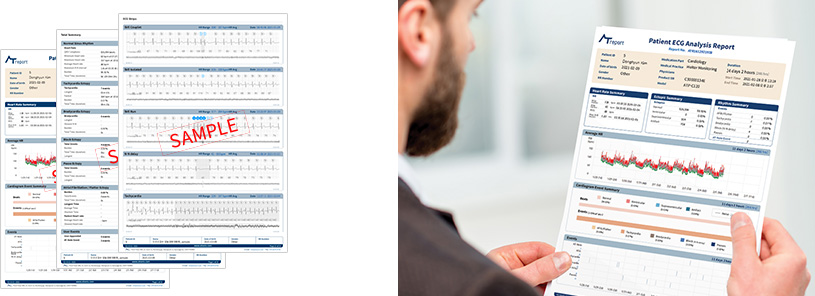

AT-Report
Doctor-centric ‘Final Report’ design
AT-Report provides convenient User Interface and Final Report customization, and it can be saved as PDF format with printing support. It also helps doctors for faster and more accurate review and interpretation with core analysis results summary and back-up data from the Final Report.
AT-Monitoring
Real-time ECG Monitoring of patients admitted to a ward with wearable ECG Monitor ‘AT-Patch’.
It transmits the patient’s ECG signal to check their health.
AT-Patch
AT-Patch monitors patient’s health condition with patient’s ECG signal transferred by Bluetooth from the Gateway.
Gateway
Gateway collects bio signals by connecting AT-Patch with Bluetooth and transmits data to the Cloud via Wi-Fi.
Nurses’ Station
ATsens’ Smart ECG monitoring(ATP-T70) software for alarming arrythmia of patient enables real-time patient monitoring at the Nurses’ Station.
